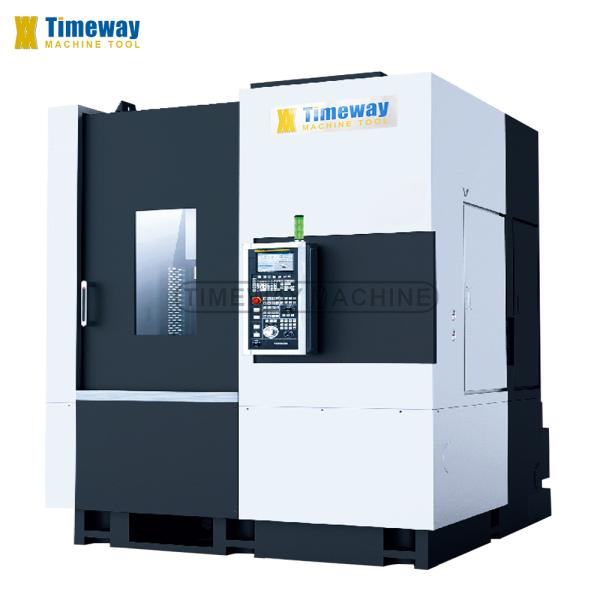

2024 VTC800 CNC Vertical Lathe/Automatic Machining Machine with 700mm Z Axis Travel

Name: 2024 VTC800 CNC Vertical LatheAutomatic Machining Machine with 700mm Z Axis Travel
Brand: TIMEWAY
Price: 32 USD

Quality 2024 VTC800 CNC Vertical Lathe/Automatic Machining Machine with 700mm Z Axis Travel for sale

Type : VERTICAL

Max. Length of Workpiece (mm) : 800

Machining Capacity : Medium Duty

Width of bed (mm) : 630 mm

Spindle Motor Power(kW) : 18.5/22

No. of Spindles : Single

Number of Axes : 2

Travel (X Axis)(mm) : 630 mm

Travel (Z Axis)(mm) : 700 mm

Positioning Accuracy (mm) : ±0.02

Repeatability (X/Y/Z) (mm) : ±0.012

Place of Origin : Henan, China

Brand Name : TIMEWAY

Model Number : VTC800

Tool Post Stations : 4

Weight (KG) : 6000

Warranty : 1 Year

Key Selling Points : Competitive Price

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

CNC or Not : CNC Lathe Machine

Product name : VTC CNC Lathe

Function : Machining Metal

Precision : High Precision Machine

Max. turning diameter : 800mm

Max. swing diameter : 900mm

Chuck size : 15 /18 /21"

Spindle speed : 100-1000rpm

Tool post cross travel (X) : 630mm

Tool post vertical travel (Z) : 700mm

Condition : New

Spindle Bore(mm) : Other

Applicable Industries : Building Material Shops, Machinery Repair Shops, Construction works , Energy & Mining

Showroom Location : Egypt, Canada, Germany, Philippines, Indonesia, Russia, Spain, Thailand, South Korea, Chile, Kazakhstan, Nigeria, Uzbekistan, Malaysia, Australia

Core Components : Bearing, Motor, Gear

Year : 2024

Max. Spindle Speed (r.p.m) : 1000 r.p.m

Marketing Type : New Product 2024

Price : $32,000.00/sets 1-2 sets

MOQ : 1 set

Contact Now

Product Description

2024 VTC800 CNC Vertical Lathe/Automatic Machining Machine with 700mm Z Axis Travel

STANDARD ACCESSORIES:

GSK ,

Electric tools turret,

Electronic handwheel,

Lubrication system,

Cooling system,

Nitrogen balancer,
Work lamp,

Pilot lamp,

Protection guard,

Heat exchanger,

Leveling blocks & bolts,

Tools & tool-box,

Operation manuals.

OPTIONAL ACCESSORIES:

FANUC CNC system,

SIEMENS CNC system,

Air conditioner,

Chain type chip conveyor.

Specification

SPECIFICATION	UNIT	VTC800
Max. turning diameter	mm	800
Max. swing diameter	mm	900
Chuck size	"	15 /18 /21"
Spindle speed	rpm	100-1000
Tool post cross travel (X)	mm	630
Tool post vertical travel (Z)	mm	700
X/Z-axis feed speed	mm/min	0.1-1000
X/Z-axis rapid feed speed	m/min	4/6
Tool post type	-	Gang-type/V4
Tool section size	mm	32x32
X/Z-axis positioning accuracy	mm	0.02
X/Z-axis repositioning accuracy	mm	0.012
Main motor power	kw	18.5/22
X-axis feed motor power	kw	2.3
Z-axis feed motor power	kw	2.3 (brake)
X/Z-axis feed motor torque	NM	15
Machine weight	kg	6000

One-Stop Shopping

You can click on the picture to view the products you are interested in

Client feedback

Our Services

1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).

Company Introduction

Factory Display：

Factory Profile：

Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.

Text Introduction：

Company Profile：

Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.

Customer Visited：

So far, we have received many customers from abroad, and they are all very satisfied with our company and products

Exhibitions：

Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.

FAQ

Q: Why choose TIMEWAY MACHINE?

A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.

2024 VTC800 CNC Vertical Lathe/Automatic Machining Machine with 700mm Z Axis Travel Images
