600mm Bed Width 255mm 280mm Spindle Bore CNC Pipe Threading Lathe Tool for Oil Country

Name: 600mm Bed Width 255mm 280mm Spindle Bore CNC Pipe Threading Lathe Tool for Oil Country
Brand: TIMAC Timeway
Price: 82 USD

Quality 600mm Bed Width 255mm 280mm Spindle Bore CNC Pipe Threading Lathe Tool for Oil Country for sale

Type : Horizontal

Max. Length of Workpiece (mm) : 3000

Structure : Flat Bed Lathe

Machining Capacity : Heavy Duty

Max. Weight of Workpiece(kg) : 4000

Width of bed (mm) : 300 mm

Spindle Motor Power(kW) : 15

No. of Spindles : Single

Number of Axes : 2

Travel (X Axis)(mm) : 420 mm

Travel (Z Axis)(mm) : 2850 mm

Place of Origin : China

Dimension(L*W*H) : 5600x1930x1900

Brand Name : TIMAC Timeway

Model Number : QK-255F/Q-280F

Voltage : 220V/380V

CNC Control System : FANUC

Tool Post Stations : 4

Weight (KG) : 7500

Warranty : 1 Year

Key Selling Points : Automatic

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Machine Type : Pipe Thread Lathe

workpiece length : 3000

Name : cnc pipe threading lathe

Product name : oil country lathe

Bed width : 600

Loading capacity : 4000

Spindle bore : 255

Spindle speed steps (manual) : 4steps (inverter)

Spindle speed : 20-420

Chuck size : 630

Condition : New

Applicable Industries : Machinery Repair Shops, Manufacturing Plant

Showroom Location : Canada, Saudi Arabia, South Korea, Colombia

Marketing Type : Other

Core Components : Bearing, Motor, Pump

Max. Spindle Speed (r.p.m) : 420 r.p.m

Spindle Bore(mm) : 255

Max. Turned Length (mm) : 3000

Packaging Details : Wooden cases(can be fumigated)

Port : China Port

Supply Ability : 150 Set/Sets per Month

Price : $82,658.00/sets 1-2 sets

MOQ : 1 set

Contact Now

CNC oil country lathe

600mm Bed Width 255mm 280mm Spindle Bore CNC Pipe Threading Lathe Tool for Oil Country

Products Description

Applications of the CNC oil country lathe:

The CNC oil country lathe meets the special requirements of users in the petroleum, geological, mining and chemical industries, and in agricultural irrigation and drainage, it is able to cut various straight and taper pipe threads of union joints, drill rods, casting pipes, drain pipes, well castings and water pump pipes more economically and efficiently as compared with the engine lathe, however, it may serve as an engine lathe to cut various metric, withworth and module threads, shafts and disks.

››››› The lathe is equipped with a taper turning attachment which can work out long taper.

››››› The lathe is equipped with double chucks which can powerful clamp long parts.

››››› The lathe is equipped with rear support which can auxiliary support longer parts.

√ FANUC/SIEMENS/GSK CNC system

√ Big bore chuck (Front & Rear)

√ Dead centers

√ 4-station electric tool-post

√ Cooling system

√ Work lamp

√ Pilot lamp

√ Semi-closed guard

√ Manual pulse generator (MPG)

√ Automatic lubrication system

√ Oil gun

√ Manual moving tailstock

√ Tools & tool-box

√ Leveling wedge & bolts

√ Operation manual (English)

_ Pneumatic chuck

_ Other tool post

_ Steady rest

_ Follow rest

_ Air conditioner

_ Chip conveyor

_ Rear support for long pipe
_ Live centers

Specification			Unit	QK-255F	QK-280F
Capacity	Swing over bed	mm	800	800
		Swing over cross slide	mm	480	480
		Distance between centers	mm	1000/1500/3000	1000/1500/3000
		Pipe threading range	mm	50-250	50-270
		Bed width	mm	600	600
		Max. load capacity	kg	4000	4000
Spindle	Spindle bore	mm	255	280
		Spindle speed steps	steps	stepless (manual 4shifts) or (hydraulic 4shifts)	stepless (manual 4shifts) or (hydraulic 4shifts)
		Spindle speed	rpm	20-480	20-480
		Chuck size	mm	630	630
		Chuck type	-	Manual 4-jaw	Manual 3-jaw
Turret	Turret type	-	V4	V4
Turret		Tool shank size	mm	32x32	32x32
Feed	X-axis travel	mm	420	420
		Z-axis travel	mm	850/1350/2850	850/1350/2850
		X-axis rapid feed speed	mm/min	4000	4000
		Z-axis rapid feed	mm/min	6000	6000
Tailstock	Tailstock quill diameter	mm	100	100
		Tailstock quill taper	-	MT5	MT5
		Tailstock quill travel	mm	250	250
Power	Main motor power	kw	15	15
Power		Coolant motor power	kw	0.125	0.125
Others	Machine dimensions	mm	3800/4300/5800x1900x1750	3800/4300/5800x1900x1750
Others		Machine weight	kg	6000/6500/7500	6200/6700/7700

Machine Details

Double chucks (Front & Rear):

The lathe standard is equipped with dual chucks (3-jaw or 4-jaw), the spindle can meet different diameter long-bars, the spindle bore includes 130mm, 200mm, 225mm, 255mm, 280mm, 300mm, 330mm, 360mm, 390mm, 440mm, 520mm, 630mm, and customized spindle bore ( 5.1" ~ 24.8” ).

4-stations electric turret:

- Adopt famous brand electric turret, high positioning accuracy. Other tool post comes optional.

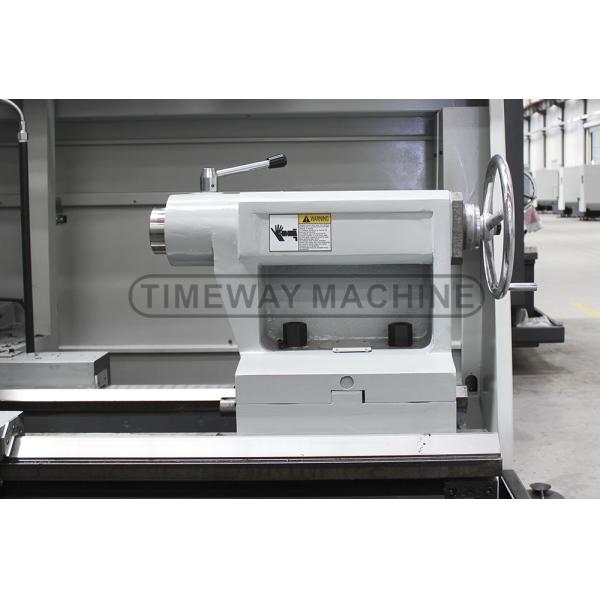

Tailstock:

- Manual moving tailstock comes standard, the electric moving taisltock comes optional.

CNC system:

SIEMENS, FANUC, MITSUBISHI, FAGOR, KND, HNC, GSK, etc. for you choice.

Automatic Production Line for Steel Pipe Threads (optional):

Test - roundness & cylindricity:

Precision turning the external surface of the bar, test accuracy:

Roundness: less than 0.01mm;

Cylindricity: less than 0.025/300mm

Test - verticality:

Precision turning the end surface of the disc, test accuracy:

Verticality: less than 0.02/300mm

Test - roughness:

Precision turning the external surface of the bar, test accuracy: Roughness: Ra1.6um

Threads turning test:

Fine turning taper threads (Taper: 1:16, Thread pitch: 3.175mm), after testing by special measuring device, it can meet accumulative error of pitch to 0.015/25.4mm.

Comprehensive testing parts (only for CNC oil country lathe):

All CNC lathes must make a final cutting process after all standard inspections of the machine, through cutting external surface, steps, arc surface, tapered surface, etc., in order to inspect stability of CNC system and overall performance of the machine.
