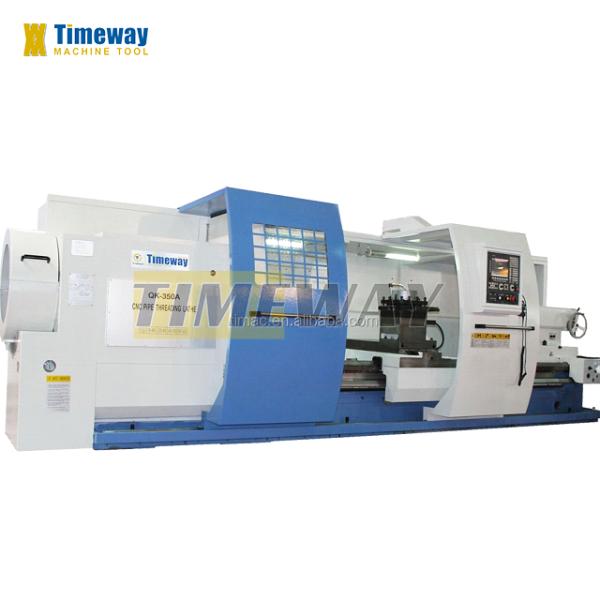

Heavy Duty CNC Horizontal Pipe Threading Turning Machine Max. diameter of pipe 340mm

Type : Horizontal

Max. Length of Workpiece (mm) : 5000 mm

Structure : Flat Bed Lathe

Machining Capacity : Heavy Duty

Width of bed (mm) : 755 mm

Spindle Motor Power(kW) : 18.5

No. of Spindles : Twin

Number of Axes : 3

Travel (X Axis)(mm) : 1100 mm

Travel (Z Axis)(mm) : 730 mm

Positioning Accuracy (mm) : 0.02 mm

Repeatability (X/Y/Z) (mm) : 0.01

Place of Origin : China

Dimension(L*W*H) : 6300x2520x2120mm

Brand Name : TIMAC

Model Number : QK-350A

Voltage : As request

CNC Control System : FANUC

Tool Post Stations : None

Weight (KG) : 11000

Warranty : 1 Year

Key Selling Points : Automatic

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Machine Type : CNC pipe threading turning machine

Color : Customized Option

Max. diameter of pipe : 340mm

Spindle bore : 355mm

Bed width : 755mm

Max. weight of workpiece : 5000kg

Spindle speed : 5-320rpm(4shifts, stepless)

Max. Swing Diameter : 1100mm

Weight : 11000kg

Power(W) : 18.5kw

Condition : New

Applicable Industries : Manufacturing Plant

Showroom Location : Turkey, Brazil, Indonesia, Russia, Romania, South Africa

Marketing Type : Ordinary Product

Core Components : Bearing, Motor, Gear, Engine, Other

Max. Spindle Speed (r.p.m) : 320 r.p.m

Spindle Bore(mm) : 355 m'm

Max. Turned Length (mm) : 4800

Packaging Details : Wooden cases(can be fumigated)

Port : China Port

Supply Ability : 50 Set/Sets per Month

Price : $8,000.00/sets 1-2 sets

MOQ : 1 set

Contact Now

Heavy Duty CNC Horizontal Pipe Threading Turning Machine Max. diameter of pipe 340mm
Products Description
Application:
We, Timeway Machine sold 6", 8", 10", 14", 18" hollow spindle CNC oil country lathes designed to perform all sizes of the threads used in the oil & gas industry; center height 385mm, 500mm, 550mm, 650mm; distance between centres from 750mm up to 5000mm; 3-jaw self-centering chuck or 4-jaw independent chuck on both sides of gear box. All machines are in conformity to the CE norms.

Features:
1. The lathe was developed mainly for the turning of oil-field pipe threads.
2. It is suitable for the turning of arious kinds of pipe threads, and is also can be used as universal CNC Lathe.
3. The machine is simple CNC lathe which use half closed-loop control system, which belong to popular CNC pipe thread lathe.
4. It can cut many complex parts as shaft, sleeve and dish, internal and external cylindrical surfaces, concal surfaces, holows, end plane, grrove, chamfer, screw thread, and so on.
5. It is suitable for repeated and medium batch manufacturing in chief.
Heavy Duty CNC Horizontal Pipe Threading Turning Machine Max. diameter of pipe 340mm
Heavy Duty CNC Horizontal Pipe Threading Turning Machine Max. diameter of pipe 340mm
Specification
Unit
QK-120A
QK-190A
QK-260A
QK-350A
QK-460A
Capacity
Centre height
385
500
550
650
Swing over bed
mm
770
1000
1100
1250
Swing over carriage
mm
480
630
730
900
External diameter of pipes
mm
120
190
70-260
114-340
300-460
(manual chuck)
Maximum length of workpiece
mm
750/1000/1500/2000/3000
1500/3000/5000
3000
Maximum turning length
mm
600/800/1350/1850/2850
1300/2800/4800
2800
Span of guideway
mm
550
755
1100
Spindle
Spndle bore
mm
130
200
275
355
465
Spindle nose
C11
A2-15
A2-28
Headstock
Step of Spindle speed(Three-phase asyn-chronous motor)
Manual 3 steps,auto 6 steps 16 speeds
Manual 2 steps,auto 4 steps 8 speeds
---
---
---
Step of Spindle speed(Variable frequency motor)
---
---
Auto 4 gear steps,stepless speed change in the step.
Range of spindle speed(Three-phase asyn-chronous motor)

25-800
90-450
---
---
---
Range of spindle speed(Variable frequency motor)

---
---
6-400
5-320
5-200
Main motor power(Three-phase asyn-chronous motor)
kw
11
---
---
---
Main motor power
18.5
28/38
(Variable frequency motor)
Chuck type(manual chuck)

Manual 3 jaw 380
Manual 3 jaw 500
Manual 4 jaw 630
Manual 4 jaw 800
Manual 4 jaw 630
Feed
Min.feed increment of X-/Z-axis
mm
0.001/0.001
Rapid speeds of X-/Z-axis
mm/min
3000/6000
Max.travel of x-axis
mm
390
630
800
Carriage
Tool-post working position

Vertical 4-position240
Vertical 4-position300
Indexing time
s
2.5
4
Indexing repeatility
mm
0.008
0.01
Section of tool shank
mm
32
40
Tailstock
Diameter of tailstock quill
mm
100
160
Travel of tailstock quill
mm
250
300
Taper hole of tailstock quill
Morse 5
Morse 6
CNC system
Alternatives
FANUC 0i TD; SIEMENS 840 DSL; FAGOR 8055TC
Standard Configuration:
Optional Configuration:
· FANUC CNCsystem
· Vertical 4-station electric tool-post
· Electric Tailstock
· Manual 4-jaw chuck
· Central lubrication system
· Working light
· Coolant system
· Semi-closed cover
· Electric cabiner with air Conditioner
· Tool box and tools
· Programming manual
· Operator manual
· SIEMENS/FAGOR CNC system
· Hydraulic chuck
· Hydraulic or manual tailstock
· Six and eight stations tool-post
· Hydraulic or pneumatic 3-jaw chuck
· Live center
· Special accessories
Why Choose Us
Heavy Duty CNC Horizontal Pipe Threading Turning Machine Max. diameter of pipe 340mm
Heavy Duty CNC Horizontal Pipe Threading Turning Machine Max. diameter of pipe 340mm
Heavy Duty CNC Horizontal Pipe Threading Turning Machine Max. diameter of pipe 340mm
Heavy Duty CNC Horizontal Pipe Threading Turning Machine Max. diameter of pipe 340mm
Heavy Duty CNC Horizontal Pipe Threading Turning Machine Max. diameter of pipe 340mm
Heavy Duty CNC Horizontal Pipe Threading Turning Machine Max. diameter of pipe 340mm
Heavy Duty CNC Horizontal Pipe Threading Turning Machine Max. diameter of pipe 340mm
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;

Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.

Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )

Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.

Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
