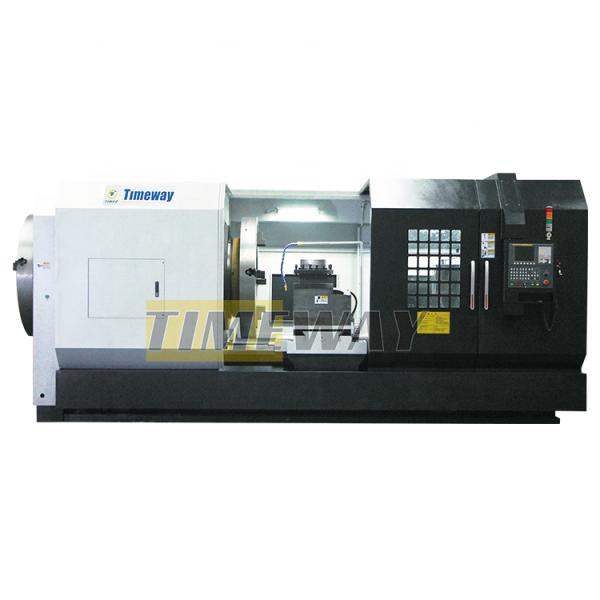

3000mm Max. Workpiece Length Pipe Threading Lathe Machine with 22kW Spindle Motor Power

Name: 3000mm Max Workpiece Length Pipe Threading Lathe Machine with 22kW Spindle Motor Power
Brand: Timac
Price: 58 USD

Quality 3000mm Max. Workpiece Length Pipe Threading Lathe Machine with 22kW Spindle Motor Power for sale

Type : Horizontal

Max. Length of Workpiece (mm) : 3000

Structure : Flat Bed Lathe

Machining Capacity : Medium Duty

Width of bed (mm) : 0 mm

Spindle Motor Power(kW) : 22

No. of Spindles : Twin

Number of Axes : 2

Travel (X Axis)(mm) : 520 mm

Travel (Z Axis)(mm) : 1200 mm

Place of Origin : Henan, China

Dimension(L*W*H) : 6500*2200*2200

Brand Name : Timac

Model Number : QK-520

Tool Post Stations : 12, 8, 10, 6, 4

Weight (KG) : 16000

Warranty : 1 Year

Key Selling Points : Easy to Operate

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Pipe threading range : 330-510mm

Max. swing over bed : 1200mm

Max. swing over cross slide : 710mm

Max. length of workpiece : 1500/3000/5000mm

Max. turning length : 1250/2750mm

Span of guideway : 765mm

Spindle nose : Thread-type

Spindle bore : 520mm

Spindle speed : 8-190rpm

Condition : New

Showroom Location : Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, R

Core Components : Bearing, Motor, PLC, Engine

Max. Spindle Speed (r.p.m) : 190 r.p.m

Spindle Bore(mm) : 520

Applicable Industries : Machinery Repair Shops, Manufacturing Plant, Mould, mental process

Marketing Type : Hot Product

Packaging Details : Wooden cases(can be fumigated)

Port : China Port

Supply Ability : 150 Set/Sets per Month

Price : $58,000.00/sets 1-2 sets

MOQ : 1 set

Contact Now

Product Description

CNC oil country lathe

3000mm Max. Workpiece Length Pipe Threading Lathe Machine with 22kW Spindle Motor Power

The CNC oil country lathe meets the special requirements of users in the petroleum, geological, mining and chemical industries, and in agricultural irrigation and drainage, it is able to cut various straight and taper pipe threads of union joints, drill rods, casting pipes, drain pipes, well castings and water pump pipes more economically and efficiently as compared with the engine lathe, however, it may serve as an engine lathe to cut various metric, withworth and module threads, shafts and disks.

››››› The lathe is equipped with a taper turning attachment which can work out long taper.
››››› The lathe is equipped with double chucks which can powerful clamp long parts.
››››› The lathe is equipped with rear support which can auxiliary support longer parts.

Specification

Specification	Unit	QK-520	QK-550	QK-640
Pipe threading range	mm	330-510	330-550	330-630
Max. swing over bed	mm	1200	1250	1400
Max. swing over cross slide	mm	710	900	800
Max. length of workpiece	mm	1500/3000/5000	1500/3000/5000	1500/3000/5000
Max. turning length	mm	1250/2750	1250/2750/4750	1250/2750/4750
Span of guideway	mm	765	1100	1100
Spindle nose	-	Thread-type	A2-28	Thread-type
Spindle bore	mm	520	550	640
Spindle speed	rpm	8-190 (manual 3steps)	23-258 (Manual 2steps)	2-120 (manual 3steps)
Chuck size	mm	1000 (electric)	1250 (manual)	1250 (manual)
Min. feed increment of X/Z-axis	mm	0.001/0.001	0.001/0.001	0.001/0.001
X/Z-axis rapid feed speed	m/min	4/4	4/4	4/4
X-axis travel	mm	520	750	750
Turret type	mm	V4	V4	V4
Section of tool shank	mm	50x50	50x50	50x50
Indexing repeatility	mm	0.008	0.008	0.008
Max. cutting force	N	30000	30000	30000
Tailstock quill diameter	mm	160	260	260 (rotary quill)
Tailstock quill travel	mm	300	300	300
Tailstock quill taper	-	MT6	metric 80	Metric 80
Main motor power	kw	22	37	37
Working accuracy	um	IT6-IT7	IT6-IT7	IT6-IT7
Surface roughness	um	Ra1.6	Ra1.6	Ra1.6
Machine length	mm	5000/6500/9000	5500/7000/9000	5600/7100/9100
Machine width	mm	2300	2500	2500
Machine height	mm	2200	2500	2500
Machine weight	tons	15/16/20	17.8/19/23	18/19.3/24
CNC system	-	FANUC/SIEMENS	FANUC/SIEMENS	FANUC/SIEMENS
