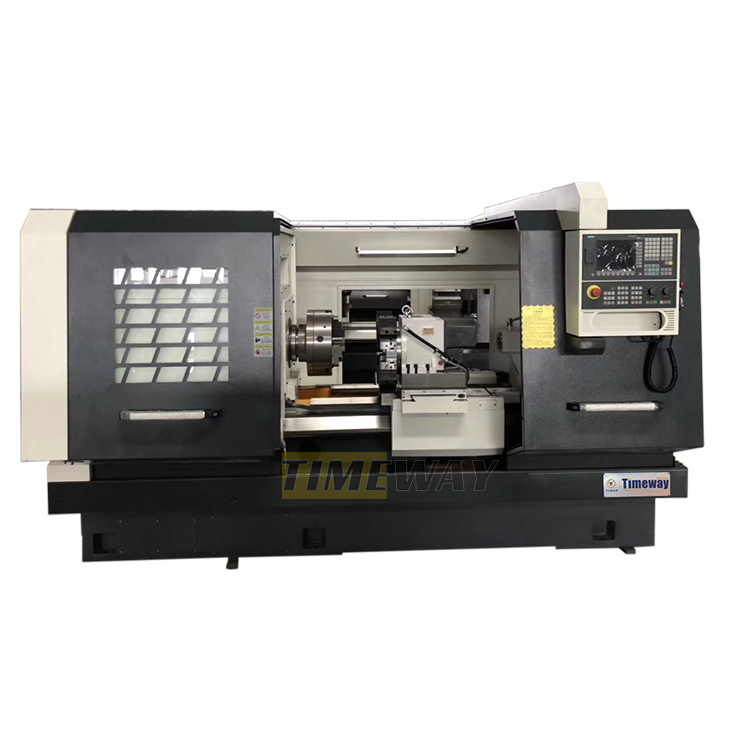

Horizontal CNC Pipe Threading Lathe The Best Choice for Industry Machinery

Type : Horizontal

Max. Length of Workpiece (mm) : 3000

Structure : Flat Bed Lathe

Machining Capacity : Light Duty

Width of bed (mm) : 800 mm

Spindle Motor Power(kW) : 11

No. of Spindles : Single

Number of Axes : 2

Travel (X Axis)(mm) : 390 mm

Travel (Z Axis)(mm) : 800 mm

Place of Origin : China

Dimension(L*W*H) : 5177*1800*1850

Brand Name : TIMAC/Timeway

Model Number : QK-130

CNC Control System : FANUC

Tool Post Stations : 4

Weight (KG) : 10000

Warranty : 1 Year

Key Selling Points : High-accuracy

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Name : CNC Pipe Thread Lathe Machine

CNC or Not : CNC Lathe Machine

CNC Controller : GSK SIEMENS FANUC SYNTEC

Machine Type : Horizontal CNC Lathe

Color : Customers' Requirement

Max.swing over bed : 800mm

Spindle speed : 20-1000rpm

Spindle bore : 130mm

Bed width : 550mm

Max. swing over cross slide : 450mm

Condition : New

Spindle Bore(mm) : 130

Applicable Industries : Machinery Repair Shops, Manufacturing Plant, Retail, Energy & Mining

Showroom Location : Egypt, France, Germany, Viet Nam, Brazil, Russia, Spain, Kenya

Marketing Type : Hot Product 2019

Core Components : Bearing, Motor

Max. Spindle Speed (r.p.m) : 1000 r.p.m

Packaging Details : Wooden cases(can be fumigated)

Port : China Port

Supply Ability : 150 Set/Sets per Month

Price : $69,000.00/sets 1-2 sets

MOQ : 1 set

Contact Now

Product Description
CNC Pipe Thread Lathe/Oil Country Lathe
Horizontal CNC Pipe Threading Lathe The Best Choice for Industry Machinery
Features:
***Adopt high quality cast iron (HT300) one molding casting, after the second aging treatment, it has the feature of stable performance, good rigidity, anti-vibration ability.
***Spindle is supported by three-point with heavy load bearing, rotating stability, For QK-200P and QK-240P, spindle is supported by two-point with precision heavy load bearing.
***For QK-130, Adopt 11kw high-power AC main motor, spindle speed change is semi-automatic, manual 3 gear shift and automatic 6 gear shift, total 16 steps.
Specification
Specifications
Unit
QK-130
QK-200
Capacity
Swing over bed
mm
630/800
630/800
Swing over cross slide
mm
340/540
340/540
Distance between centers
mm
1000/1500/3000
1000/1500/3000
Pipe threading range
mm
30-126
50-193
Bed width
mm
550
550
Max. load capacity
kg
3000
3000
Spindle
Spindle bore
mm
130
200
Spindle speed steps
steps
3shifts, stepless
4shifts, stepless (manual or auto.)
Spindle speed
rpm
30-650
20-500
Chuck size
mm
400
500
Chuck type (manual)
-
3-jaw
3-jaw
Turret
Turret type (electric)
-
V4
V4
Tool shank size
mm
32x32
32x32
Feed
X-axis travel
mm
320/420
320/420
Z-axis travel
mm
850/1350/2850
850/1350/2850
X-axis rapid feed speed
mm/min
4000
4000
Z-axis rapid feed speed
mm/min
6000
6000
Tailstock
Tailstock quill diameter
mm
100
100
Tailstock quill taper
-
MT5
MT5
Tailstock quill travel
mm
250
250
Others
Main motor power
kw
11
11
Coolant motor power
kw
0.125
0.125
Machine dimensions
mm
3300/3800/5300x1800x1750
3300/3800/5300x1800x1750
Machine weight
kg
4500/5000/6000
4600/5100/6100
Accessories

Standard accessories:

=FANUC/GSK/SIEMENS CNC system
=4-station electric tool-post
=Work lamp
=Pilot lamp
=Cooling system
=Semi-closed guard
=Manual pulse generator (MPG)
=Dead centers
=Oil gun
=Automatic lubrication pump
=Manual moving tailstock
=Tools & tool-box
=Leveling wedge & bolts
=Operation manual (English)

Optional accessories:

=Penumatic chuck
=Other tool-post
=Chip conveyor
=Air conditioner
=Rear support for long pipe
Company Profile
Horizontal CNC Pipe Threading Lathe The Best Choice for Industry Machinery

Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Horizontal CNC Pipe Threading Lathe The Best Choice for Industry Machinery

Our company has advanced production testing equipment, first-class R & D, production, sales and service teams, and behave the own production and acceptance standard higher than the national standard to ensure that each machine delivered by us can make customer satisfaction and help customer create the greatest benefits.
Client feedback
Horizontal CNC Pipe Threading Lathe The Best Choice for Industry Machinery

Adhering to the "quality products, first-class service, sustainable development" concept, adhere to the "low-key life,high-profile work" spirit of enterprise, look forward to sincere cooperation and work together with the friends from domestic and abroad to create a better future for all.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;

Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.

Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )

Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.

Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
