Horizontal CNC Lathe Machine with Competitive and Customer Requirements

Name: Horizontal CNC Lathe Machine with Competitive and Customer Requirements
Brand: Timeway
Price: 36 USD

Quality Horizontal CNC Lathe Machine with Competitive and Customer Requirements for sale

Type : Horizontal

Max. Length of Workpiece (mm) : optional

Structure : Flat Bed Lathe

Machining Capacity : Medium Duty

Max. Weight of Workpiece(kg) : 8000

Width of bed (mm) : 100 mm

No. of Spindles : Single

Number of Axes : 2

Travel (X Axis)(mm) : 570 mm

Travel (Z Axis)(mm) : 1000 mm

Positioning Accuracy (mm) : 0.01

Repeatability (X/Y/Z) (mm) : ±0.001

Place of Origin : Henan, China

Dimension(L*W*H) : 4300*2350*2150

Brand Name : Timeway

Model Number : AK-1000B

Voltage : Customer's Requirement

CNC Control System : GSK

Tool Post Stations : 8, 4

Weight (KG) : 9800

Warranty : 1.5 years

Key Selling Points : Competitive Price

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Range of Spindle Speed(r.p.m) : 5 - 400 r.p.m

Travel (Y Axis)(mm) : 1000 mm

Spindle Taper : ISO40, BT40

Cutting torque : 146 N.m

Rapid Feed Speed(mm/min) : 3000 - 6000 mm/min

Feed Speed(mm/min) : 1250 - 2450 mm/min

Min. Time of Tool Change(s) : 0.7

CNC or Not : CNC

Machine Type : Flat Bed CNC Lathe

Product name : CNC Lathe Mechine

Name : High Precision CNC Lathe Machine

Keyword : Automatic CNC Lathe Machine

Function : Machining Metal

Product type : Cnc Horizontal Turning Lathe Machine

Precision : High Precision Machine

Application : Material Processing

Color : Customers' Requirement

Price : $36,584.00/sets 1-2 sets

MOQ : 1 set

Contact Now

Product Description

Heavy Duty Horizontal CNC Lathe

Horizontal CNC Lathe Machine with Competitive and Customer Requirements

* Longitudinal and cross feeds are effected by ball leadscrews.

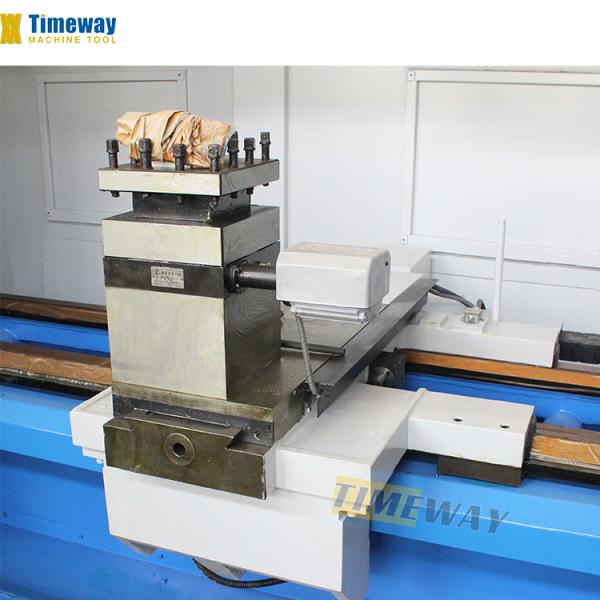

* Either vertical or horizontal 4/6 station tool post or gang tools can be selected.
* The tool post is located on precision contrite gears with a high repeated positioning accurcy.
* Both chuck and tailstock are supplied with hydraulic or manual type.
* The surface of the guideways is supersonic frequency hardened and precision ground with a long service life.
* The spindle system is high in the rigidity and accuracy.
* An inverter is used to realize variable speed.

Specification

Specification	Unit	AK-1000B	AK-1250B	AK-1400B	AK-1600B
Max. swing over bed	mm	1000	1250	1400	1640
Max.. swing over cross slide	mm	630	880	1030	1250
Distance between centers	mm	1000/1500/2000/3000/4000/5000/6000/8000/10000/12000/-
Max. turning length	mm	730/1300/1800/2800/3800/4800/5800/7800/9800/11800/-
Bed width	mm	755	755	755	755
Loading capacity	kg	6000 (opt: 8000)	6000 (opt: 8000)	6000 (opt: 8000)	6000 (opt: 8000)
Spindle nose	mm	A2-15	A2-15	A2-15	A2-15
Spindle bore	mm	130	130	130	130
Spindle taper	-	Metric 140	Metric 140	Metric 140	Metric 140
Spindle speed (Hydraulic 4steps, stepless)	rpm	5-320	5-320	5-320	5-320
Center height	mm	500	625	700	820
Chuck size (4-jaw)	mm	1000	1000	1000	1000
X/Z-axis min. feed unit	mm	0.001/0.001	0.001/0.001	0.001/0.001	0.001/0.001
X/Z-axis rapid feed speed	mm/min	3000/5000	3000/5000	3000/5000	3000/5000
Cross travel (X)	mm	570	570	690	630
Tool post type	-	V4/V6/V8	V4/V6/V8	V4/V6/V8	V4/V6/V8
Tool change time	s	2.6	2.6	2.6	2.6
Turret repeat positioning accuracy	mm	0.01	0.01	0.01	0.01
Tool section size	mm	40x40	40x40	40x40	40x40
Tailstock quill diameter	mm	160	160	160	160
Tailstock quill travel	mm	300	300	300	300
Tailstock quill taper	-	MT6	MT6	MT6	MT6
CNC system	-	FANUC/GSK/SIEMENS	FANUC/GSK/SIEMENS	FANUC/GSK/SIEMENS	FANUC/GSK/SIEMENS
Working accuracy	-	IT6-IT7	IT6-IT7	IT6-IT7	IT6-IT7
Surface roughness	µm	Ra1.6	Ra1.6	Ra1.6	Ra1.6

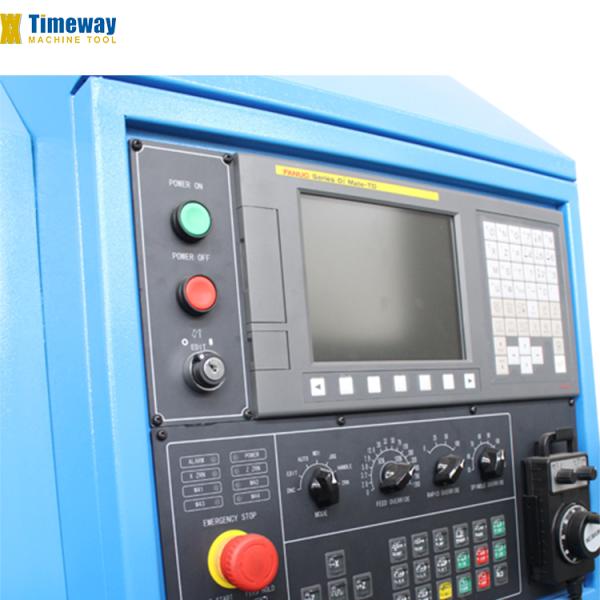

Detailed Images
