High Precision Single Column Vertical Lathe Machine with FANUC Siemens CNC Controller

Name: High Precision Single Column Vertical Lathe Machine with FANUC Siemens CNC Controller
Brand: Timac/Timeway
Price: 12 USD

Quality High Precision Single Column Vertical Lathe Machine with FANUC Siemens CNC Controller for sale

Type : VERTICAL

Max. Length of Workpiece (mm) : 1600

Machining Capacity : Heavy Duty

Max. Weight of Workpiece(kg) : 8000

No. of Spindles : Single

Number of Axes : 2

Travel (X Axis)(mm) : 1030 mm

Travel (Z Axis)(mm) : 1000 mm

Positioning Accuracy (mm) : ±0.002

Repeatability (X/Y/Z) (mm) : ±0.001

Place of Origin : China

Dimension(L*W*H) : 5510*3925*4600mm

Brand Name : Timac/Timeway

Model Number : VLK1600E

Voltage : 380V/420V/440V

CNC Control System : FANUC

Tool Post Stations : 4

Weight (KG) : 15000

Warranty : 1 Year, 1-year

Key Selling Points : Automatic, Competitive Price, High Safety Level, High-accuracy, Energy saving, Sustainable, Long Service Life, Easy to Operate, Flexible Manufacturing, Digital

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Range of Spindle Speed(r.p.m) : 2 - 200 r.p.m

Travel (Y Axis)(mm) : 1600 mm

Spindle Taper : ISO40, BT40, BT50

Cutting torque : 17.5 N.m

Rapid Feed Speed(mm/min) : 0.1 - 2000 mm/min

Feed Speed(mm/min) : 0.1 - 500 mm/min

Min. Time of Tool Change(s) : 0.7

CNC or Not : CNC Lathe Machine

Product name : Single Column CNC Vertical Lathe Mechine

Product type : Vertical CNC Machine

Model : VLK1600E

Max.swing diameter : 1600mm

Max. turning diameter : 1600mm

Max. height : 1400mm

loading capacity : 8000kg

Main motor power : 37kw

Price : $12,000.00/pieces 1-2 pieces

MOQ : 1 set

Contact Now

Products Description

Single Column CNC Vertical Lathe

VLK800E VLK1250E VLK1600E VLK2000E

High Precision Single Column Vertical Lathe Machine with FANUC Siemens CNC Controller

Machine Summary

* The machine is suitable for processing large and thin and heavy irregular workpiece; No the workpiece roundness error due to inertia weight, ensure that the roundness precision of the workpiece. Due to the weight of workpiece, so workpiece and fixture can ensure that closed, short workpiece loading and unloading time and stability.
* The column,beam, and ram guideway adopt grinding after quenching, have super wear resistance and prolong the service life; Unique whole enclosed shield prevent scraps and coolant splash, achieve environmental protection purposes.

Accessories

* Automatic lubrication system
* Full eclosed shield
* Electrical cabinet with air condition
* Precise oil cooler
* SIEMENS 808D
* Automatic chip removal(side removal)

* SIEMENS 828D

* FANUC 0i-TF

* special fixture

Specification

Specifications	Unit	VLK800E	VLK1250E	VLK1600E	VLK2000E
Max. swing diameter	mm	950	1250	1600	2000
Max. turning diameter	mm	800	1250	1600	2000
Max. height of workpiece	mm	800	1000	1000	1250
Max. weight of workpiece	kg	2000	5000	8000	12000
Main motor power	kw	22	22	30	37
Worktable diameter	mm	800	1010	1400	1800
Max. torque of worktable	KN.m	10	17.5	25	32
Worktable speed range	rpm	2-320	1.25-200	1-160	4-125
Number of tool station	pcs	4	4	4	4
Tool shank section of external turning tool	mm	32x40	32x40	32x40	32x40
Drive type	-	Electric	Electric	Electric	Electric
X-axis ball screw size (dia. x screw pitch)	mm	50x10	50x10	50x10	50x10
Z-axis ball screw size (dia. x screw pitch)	mm	50x10	50x10	50x10	50x10
X-axis travel	mm	-20~550	-20~800	-20~1030	-20~1150
Z-axis travel	mm	650	650	800	800
Feed range(X/Z)	mm	0.1-500	0.1-500	0.1-500	0.1-500
Rapid feed speed	mm/min	2000	2000	2000	2000
CNC system	-	SIEMENS 808D	SIEMENS 808D	SIEMENS 808D	SIEMENS 808D
Servo motor torque(X/Z)	N.m	11/11	11/11	15/11	15/11
Power capacity	Kva	30	37	45	52
Machine net weight	kg	8500	11000	14500	18500
Machine dimension (LxWxH)	cm	430x238x429	478x257x440	563x301x466	580x368x494
Chip conveyor	-	Chain type	Chain type	Chain type	Chain type
Standard	-	Automatic lubrication system, Full closed guard, air conditioner, Oil cooler
Optional	-	SIEMENS 828D, FANUC 0i-TF, special fixture

Machine Details

1. The series CNC single column vertical lathe is designed by absorbing modern advanced design and manufacturing techniques and using CAD optimization design method, using the latest design concept and equipping with domestic and foreign advanced features. 2. Realize strong cutting on the structure performance, the worktable overweight load, machine high dynamic and static stiffness, all movement safety and stability, long service life and high processing efficiency. 3. The machine is suitable for high speed steel and carbide cutting tools, processing workpieces of all ferrous and non-ferrous metals and some nonmetal materials. 4. The machine can complete the process of rough and finish turning inside and outside cylinder, inside and outside cone surface, plane surface, the circular arc surface and grooving. 5. The machine is mainly composed of column, worktable, beam, vertical tool post, main drive gearbox, beam lifting mechanism, vertical tool post feeding mechanism, beam guide protection device, complete machine full enclosure, electrical system, hydraulic system, cooling system, etc.

Column

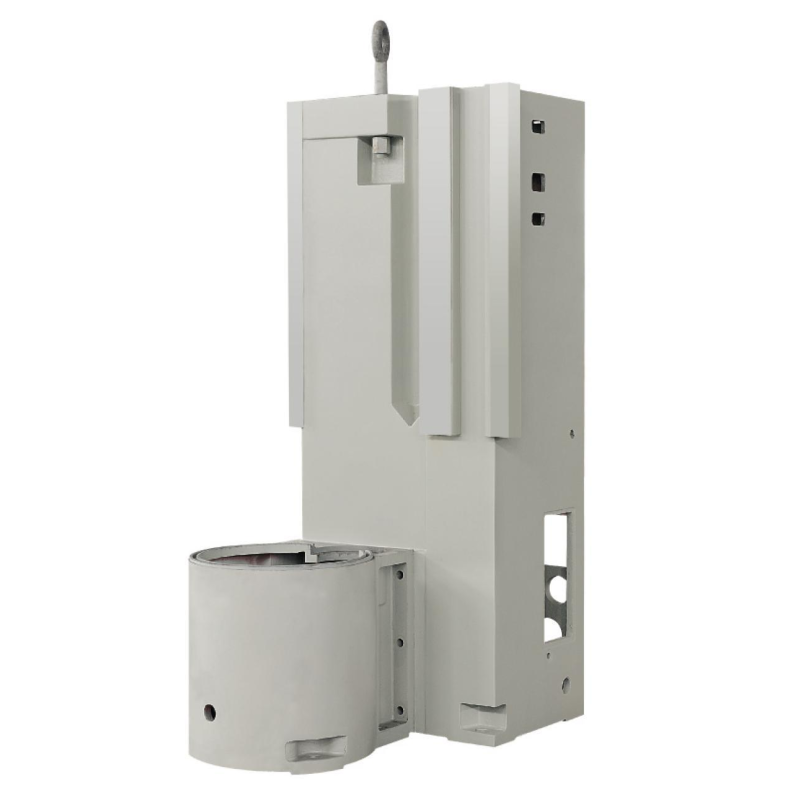

The column adopts the optimization design of
box-type structure and reasonable layout stiffener,
so as to realize the good thermal stability, high
strength and high rigidity. The column guideway
adopts grinding after quenching, to improve wear
resistance and prolong service life. The guideways
adopt stainless steel sealing cover for protection
and reduce the corrosion rate.

Worktable Base

The worktable base adopts high strength and high
rigid cast iron material, to improve stability and
absorb vibration. Unique thermal symmetric
structure, overcome the spindle temperature rise
effect on machining accuracy.
The spindle is equipped with spindle encoder, to
realize constant linear speed cutting.

Worktable

The worktable adopts high strength and high rigid cast iron material, to improve stability and absorb vibration.

Worktable and worktable base and motor separation,
relying on the V-type belt drive, max. limit reduces
the vibration of the motor heat directly affect the
machining accuracy.

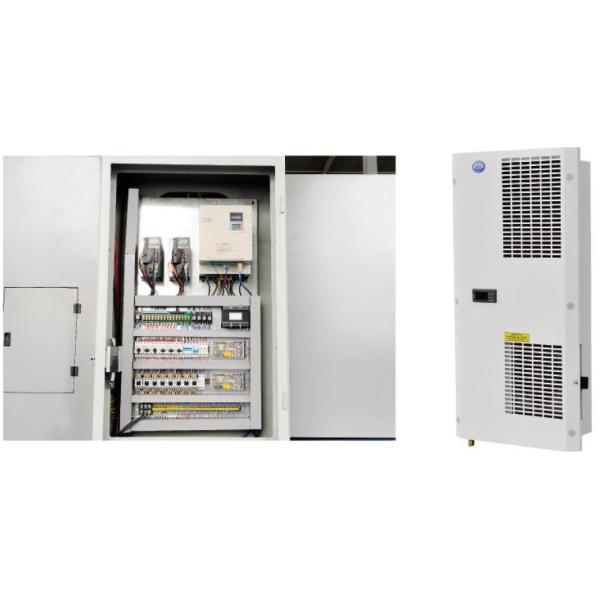

Electrical Cabinet

Electrical cabinet placed directly within the column, so the structure is more compact, save space. Beautiful appearance, wire marking clear and complete, wiring and tidy; The connection of the electrical cabinet to bed adopt the special cable connection.
Electrical cabinet is equipped with air condition, safety and standard, to ensure controller constant temperature, the stability of the controller.

Beam

The beam guideway has very high wear resistance after
quenching and grinding, so as to guarantee long-term stability and high processing accuracy.
Horizontal guideway width large with wide guide structure, ball screw in the middle of the guide rail thoroughly solve the problem of drive torque, the guideway adopts the paster guide rail, good seismic performance, large loading capacity, decrease friction coefficient.
Beam lifting adopts two clamping points, to ensure the accuracy of the lifting beam.

Spindle Unit

Worktable uses integrated, high rigidity, high precision and short fixed-type spindle structure, the spindle is equipped with a set high precision thrust ball bearing and a set double row short cylindrical roller bearing. Compact structure, at the same time bear radial load, the axial load and tilting moment, and under the overloading elastic deformation is small, improved the precision of the rotation of the worktable and carrying capacity.

Four station electrical tool-post

High positioning accuracy, large clamping force, large loading capacity, stable and reliable. The unique dovetail cutter holder,more accurate positioning, greater clamping force.

Feed Unit

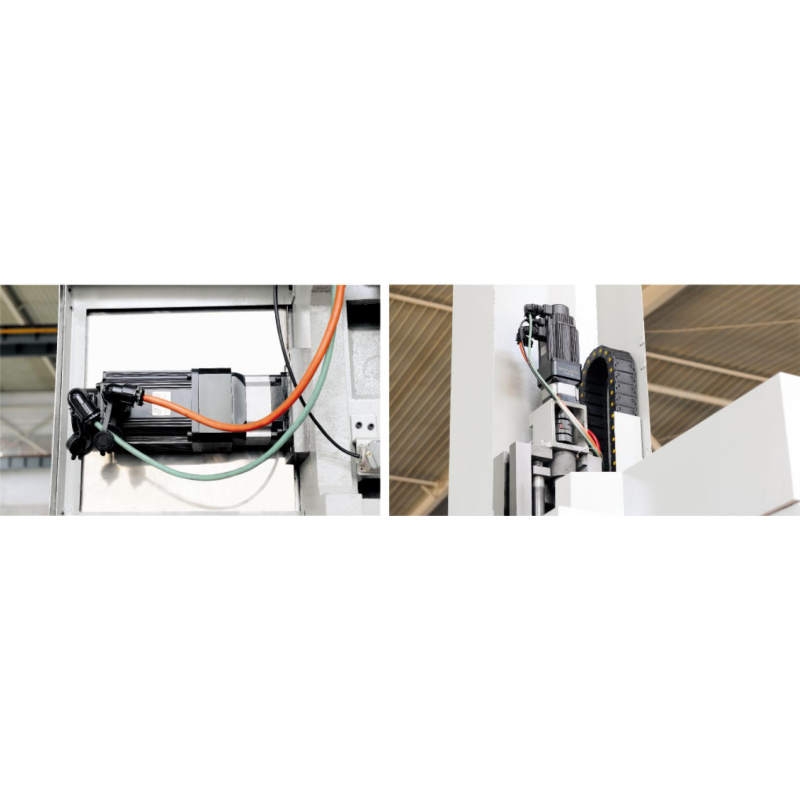

Tool-post horizontal feed(X-axis) and ram vertical feed(Z-axis) are driven by AC servo motor through the gear reducer driving ball screw, the reducer and screw through the flexible coupling connection, high transmission efficiency, small transmission error, high transmission precision.

===================================

>> Worktable uses integrated, highrigidity, high precision and short fixed-type spindle structure, the spindle is equipped with a set high precision thrust ball bearing and a set double row short cylindrical roller bearing. Compact structure, at the same time bear radial load, the axial load and tilting moment, and under the overloading elastic deformation is small, improved the precision of the rotation of the worktable and carrying capacity.

===================================

>> Customers can choose FANUC, SIEMENS, or KND, other CNC systems.

===================================

>> According to special requirements, the whole machine cover, chip conveyor.

Our Services

1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).

Company Introduction

Factory Display：

Factory Profile：

Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.

Text Introduction：

Company Profile：

Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.

Customer Visited：

So far, we have received many customers from abroad, and they are all very satisfied with our company and products

Exhibitions：

Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
