3 Meter Conventional Double Chuck Lathe Machine for and Max. Turned Length of 3000 mm

Name: 3 Meter Conventional Double Chuck Lathe Machine for and Max Turned Length of 3000 mm
Brand: TIMAC TIMEWAY
Price: 25 USD

Quality 3 Meter Conventional Double Chuck Lathe Machine for and Max. Turned Length of 3000 mm for sale

Max. Length of Workpiece (mm) : 3000

Machining Capacity : Heavy Duty

Type : Horizontal

Place of Origin : China

Brand Name : TIMAC TIMEWAY

Voltage : As per customer request

Dimension(L*W*H) : 6500x2100x1600mm

Weight (KG) : 11500 KG

Warranty : 1 Year

Key Selling Points : High-accuracy

Marketing Type : Other

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

After-sales Service Provided : Engineers available to service machinery overseas

Machine Type : Flat bed pipe thread turning machine

workpiece length : 3000mm

Spindle bore : 280mm

Processing capacity : heavy duty

Max. weight of workpiece : 5000kg

Name : pipe threading lathe

Chuck size : 800mm(4-jaw manual)

Max. Swing Diameter : 1000mm

Certification : CE ISO

Condition : New

Applicable Industries : Garment Shops, Building Material Shops, Machinery Repair Shops, Construction works , Other

Showroom Location : Turkey, Germany, Brazil, Peru, Russia, Thailand, Romania, Malaysia, Australia

Core Components : Bearing, Gear, Motor, Gearbox, Other

Spindle Bore(mm) : 280

Max. Turned Length (mm) : 3000 mm

Packaging Details : Wooden cases(can be fumigated)

Port : China Port

Supply Ability : 100 Set/Sets per Month

Price : $25,000.00/sets 1-2 sets

MOQ : 1 set

Contact Now

Summary

1.The series lathe is including all functions and performances of common lathe, it is used for turning internal and external (taper) threads. So pipe threading lathe can become a kind of special-use lathe.

2.The oil country lathes are used for turning pipe threads, inside and outside. 3.They can be used to make external circles, holes and end surfaces of shafts or discs as general machine tools.

Product Description

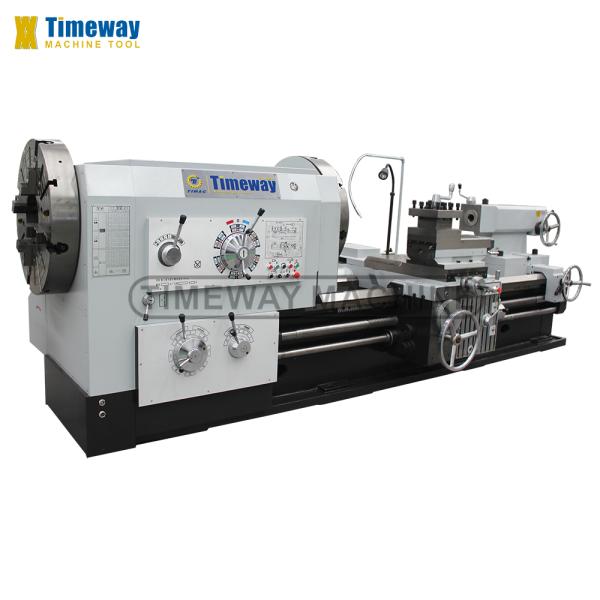

Big Bore Double Chuck Horizontal Lathe

3 Meter Conventional Double Chuck Lathe Machine for and Max. Turned Length of 3000 mm

Feature：

1.Massive headstock with precision spindle running in tapered roller bearings, 2 lathe chuck mounts on both sides 2.High torque at the working spindle ensures high chip removal rates when machining parts with large diameters. 3.Heavy machine bed made of premium cast-iron with hardened and ground guideways. Central, practical controls for feeds and thread leads. 4.Wide spectrum of inch and metric threads. 5.Gears are hardened and ground. 6.Heavy-duty 4-station tool holder. 7.Coolant system is included.

Specification

Specification			Unit	Q-130	Q-200	Q-225	Q-240
Capacity	Swing over bed	mm	Φ630/Φ800	Φ630/Φ800	Φ630/Φ800	Φ800
		Swing over cross slide	mm	Φ340/Φ540	Φ340/Φ540	Φ340/Φ540	Φ480
		Distance between centers	mm	1500/3000	1500/3000	1500/3000	1500/3000
		Pipe threading range	mm	Φ30-126	Φ50-193	Φ50-220	Φ60-230
		Bed width	mm	550	550	550	705
		X-axis travel	mm	320	320	320	320
		Z-axis travel	mm	1310/2810	1310/2810	1310/2810	1310/2810
		Max. load capacity	kg	3000	3000	3000	3000
Spindle	Spindle bore	mm	Φ130	Φ200	Φ225	Φ240
		Spindle speed steps	steps	FWD.18/REV.9	FWD.12/REV.6	FWD.12/REV.6	12
		Spindle speed	rpm	12-642/19-800	24-300/38-384	24-300/38-384	20-460
		Chuck size	mm	Φ400	Φ520	Φ520	Φ630
		Chuck type	-	3-jaw manual	4-jaw manual	4-jaw manual	4-jaw electric

Standard Configuration:

* 4 - jaw chuck, 2 sets
* Taper turning device, 1 set
* Out board support, 1 piece
* Manual/electric moving tailstock
* Chuck & tool post guard
* Coolant system, Halogen light
* Maintenance tool & tool box
* Operation manual in English
* DRO (Optional)

Positive Comments From Customers

Company Profile

Factory Display：

Text Introduction：

Company Profile：

Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.

Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.

FAQ

Q: Why choose TIMEWAY MACHINE?

A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.

3 Meter Conventional Double Chuck Lathe Machine for and Max. Turned Length of 3000 mm Images
