Precision Tube Horizontal Deep Hole CNC Honing Machine with Max Honing Depth of 6000mm

Name: Precision Tube Horizontal Deep Hole CNC Honing Machine with Max Honing Depth of 6000mm
Brand: TIMAC
Price: 65 USD

Quality Precision Tube Horizontal Deep Hole CNC Honing Machine with Max Honing Depth of 6000mm for sale

Applicable Industries : Machinery Repair Shops, Manufacturing Plant

Showroom Location : Italy, France, Indonesia, Algeria, Romania, Uzbekistan, Malaysia, Australia

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Marketing Type : Ordinary Product

Warranty of core components : 1 Year

Core Components : PLC, Engine, Motor

Condition : New

Place of Origin : China

Brand Name : TIMAC

CNC or Not : CNC

Voltage : 380V/50HZ

Dimension(L*W*H) : 15500x2100x1900mm

Weight (KG) : 8000

Power (kW) : 2.2

Key Selling Points : Automatic

Warranty : 1 Year

Color : According to customer's require

Honing diameter range : 100-500mm

Max. honing depth : 1000-15000mm

Spindle center height : 350mm

Max Honing Depth : 6000mm

After-sales Service Provided : Online Support

Functions : Metal Deep Hole Honing

CNC system : Taiwan Delta or other

Machine type : Horizontal structure

Certification : CE ISO

Packaging Details : Standard Seaworthy package or according to customer's require

Port : China Port

Supply Ability : 200 Set/Sets per Year

Price : $65,000.00/sets >=1 sets

MOQ : 1 set

Contact Now

Horizontal Heavy-Duty CNC Cylinder Deep Hole Honing Machine

DHK-350 DHK-500 DHK-800

Main Outlook

Precision Tube Horizontal Deep Hole CNC Honing Machine with Max Honing Depth of 6000mm

Summary

Machine Summary

The series CNC deep hole honing machine is the dedicated machine for honing and polishing of deep hole. Mainly for fine processing of the precision parts, it is an ideal deep hole processing machine with high precision and high efficiency.
The modified version type of the machine can be designed according to the different demands. Absorbing the advanced experience home and abroad, this machine can realize accurate control of timing, positioning and quantifying in the process of production. With the development of high-performance abrasive and automated honing machine, the honing application range will get wider and wider.

Main Performances

Performance and Features

The machine adopts the mode of workpiece fixed, honing head rotating and reciprocating. It has a wide appliation, especially for processing of non-rotary workpiece, such as hydraulic cylinder, air cylinder, square body, the workpiece with rotary shaft and flange plate, etc.
The workpiece is fixed by V-type supporting and chain locking. The machine can be programmed to realize automatic operation, with setting up to honing time, reciprocation frequency and honing distance. It is suitable for mass production or single maintenance production. The machine selects Taiwan Delta control system with human-machine interface touch screen.
The surface roughness is up to Ra 0.2µm and roundness is less than 0.03mm, the hole tolerance is up to IT7 or above.
Adopting the special oil for cooling, the work area is almost not deformed and it is up to the higher precision on size and geometry with an excellent surface finish. Honing is the important processing method of precise inner hole and long hole, which has a high efficiency.
There is the crossing texture on the surface of oilstone, it is good for protection of lubricant film, and avoiding effectively occurring of embedded sand. So the using life is prolonged.

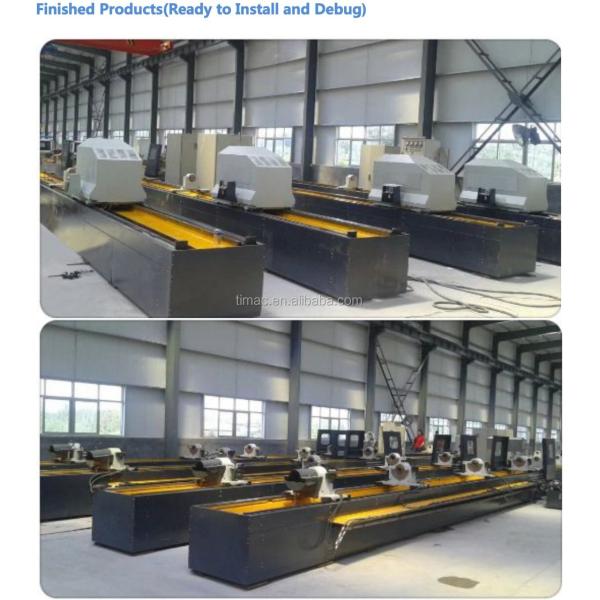

The Actual Part-graph

Main Sturcture: Bed body, Honing head box, Electrical cabinet, Operational panel, V-type clamping device, Protection guard, Guide wheel of honing bar, Linear guide rail.

Precision Tube Horizontal Deep Hole CNC Honing Machine with Max Honing Depth of 6000mm

Specifications List

Technical Parameters

Specifications	Units	DHK-350	DHK-500	DHK-800
Honing diameter range	mm	Φ80-Φ350	Φ100-Φ500	Φ350-Φ800
Max. honing depth	mm	1000-15000	1000-15000	1000-15000
Spindle center height	mm	350	500	650
Spindle speed range of honing bar box	r/min	20-200(Stepless)	10-250(Stepless)	20-250(Stepless)
Workpiece clamping dia. range	mm	Φ100-Φ420	Φ100-Φ650	Φ400-Φ1000
Carriage reciprocating speed range	m/min	1-20(Stepless)	1-20(Stepless)	1-20(Stepless)
Cooling pump flow	L/min	100	150	200, AB 50
Oil tank volume of cooling system	L	300	300	500
Honing head expansion pressure	MPa	0.3-4(Variable)	0.3-4(Variable)	0.3-4(Variable)
Spindle motor power of honing bar box	kw	11(AC servo)	11(AC servo)	15(AC servo)
Reciprocating motor power	kw	5.5(AC servo)	4.5(AC servo)	5.5(AC servo)
Clamping and expansion motor power of honing head	kw	0.75(AC servo)	0.75(AC servo)	0.75(AC servo)
Cooling pump motor power	kw	2.2	2.2	2.2

Detailed Images

Precision Tube Horizontal Deep Hole CNC Honing Machine with Max Honing Depth of 6000mm

Packaging & Shipping

Firstly packed by waterproof cloth and then in wooden case.
Few parts may need to be taken down and be packed in wooden case.
According to customer's different require, wo can adopt different packaging.

Whether CNC deep hole honing machine or CNC deep hole drilling and boring machine or CNC deep hole skiving roller burnishing machine, we all use the same standard Packagings.

Precision Tube Horizontal Deep Hole CNC Honing Machine with Max Honing Depth of 6000mm

Precision Tube Horizontal Deep Hole CNC Honing Machine with Max Honing Depth of 6000mm Images
