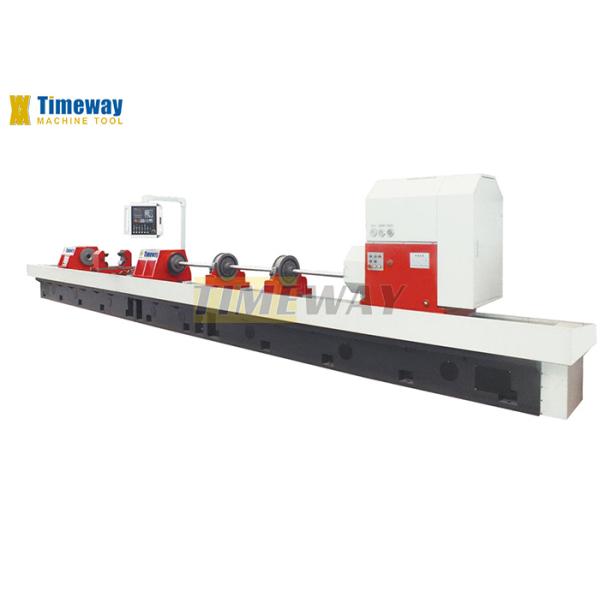

Customized CNC Skiving Roller Burnishing Machine For Pipe Boring Dia. Range 35-100 mm

Name: Customized CNC Skiving Roller Burnishing Machine For Pipe Boring Dia Range 35100 mm
Brand: TIMAC
Price: 200 USD

Quality Customized CNC Skiving Roller Burnishing Machine For Pipe Boring Dia. Range 35-100 mm for sale

Condition : New

type : Column Drilling Machine

Max. Drilling Dia. (mm) : 100 mm

Range of Spindle Speed(r.p.m) : 5 - 1200 r.p.m

CNC or Not : CNC

Place of Origin : China

Brand Name : TIMAC

Model Number : DBSK-100, DBSK-200, DBSK-360

Voltage : 220V/380V

Power (kW) : 30 kw

Weight (KG) : 4000 KG

Warranty : 1 Year

Key Selling Points : High Safety Level

Showroom Location : Egypt, Canada, Turkey, United States, Philippines, Indonesia, India, Thailand, Morocco

Applicable Industries : Manufacturing Plant, Machinery Repair Shops, Other

Marketing Type : New Product 2020

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Core Components : Bearing, Other

Machine type : CNC Skiving Roller Burnishing Machine

CNC or Normal : CNC

Boring dia. range : 35-100 mm

Processing depth range : 1-12 m

Machine guideway width : 500 mm

Spindle center height : 300 mm

Main motor power : 30 kw

Feed speed range : 5-3000 mm/min(stepless)

Air pressure : ≥0.4 MPa

Numerical control system : SIEMENS 808

Packaging Details : Wooden cases(can be fumigated)

Port : China Port

Supply Ability : 150 Set/Sets per Month

Price : $200,000.00/sets 1-2 sets

MOQ : 1 set

Contact Now

Products Description

Customized CNC Skiving Roller Burnishing Machine For Pipe Boring Dia. Range 35-100 mm

Specification	Unit	DBSK-100	DBSK-200/250	DBSK-360
Boring dia. range	mm	Φ35-Φ100	Φ40-Φ200/250	Φ60-Φ360
Processing depth range	m	1-12	1-12	1-12
Machine guideway width	mm	500	650	650
Spindle center height	mm	300	350	450
The spindle speed range, grades	r/min	5-1200(stepless)	12-1000(Four stepless)	60-1000 (four shifts, stepless)
Main motor power	kw	30	30/60 (variable frequency)	60/75 (variable frequency)
Feed speed range	mm/min	5-3000 (stepless)	5-3000 (stepless)	5-3000 (stepless)
Feed carriage rapid moving speed	m/min	3-6	3-6	3-6
Workpiece clamping diameter range	mm	Φ40-Φ150	Φ40-Φ300/Φ350	Φ120-Φ450
The feed motor	N.m	27	36	48
Cooling pump motor	kw	5.5 (two group)	5.5 (three group)	5.5 (three group)
The hydraulic pump motor	kw		1.5kw, 1440r/min	1.5kw, 1440r/min
Cooling system rated pressure	MPa	2.5	2.5	2.5
The cooling system flow	L/min	200, 200 (two group)	100, 200, 200 (three group)	200, 200, 200 (three group)
Air pressure	MPa	≥0.4	≥0.4	≥0.4
Numerical control system	-	SIEMENS 808
