High Volume Production Vertical Machining Center VMC1370L Repeatability ±0.006mm 2023

Name: High Volume Production Vertical Machining Center VMC1370L Repeatability 0006mm 2023
Brand: Timeway
Price: 30 USD

Quality High Volume Production Vertical Machining Center VMC1370L Repeatability ±0.006mm 2023 for sale

Type : VERTICAL

Range of Spindle Speed(r.p.m) : 0 - 6000

Number of Axes : 3

No. of Spindles : Single

Machining Capacity : Heavy Duty

Spindle Taper : BT50

Table Travel (X) (mm) : 1300

Table Travel (Y) (mm) : 700

Table Travel (Z) (mm) : 700

Positioning Accuracy (mm) : ±0.008

Repeatability (X/Y/Z) (mm) : ±0.006

Place of Origin : China

Brand Name : Timeway

Model Number : VMC1370L ,VMC1580L

Voltage : 220V/380V,50HZ

Dimension(L*W*H) : 3820x2600x3100

CNC Control System : GSK/Fanuc/System

Key Selling Points : High Productivity

Weight (KG) : 10000

Warranty : 1 Year

Max. Table Load(kg) : 1200 kg

Marketing Type : Ordinary Product

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

CNC or Not : CNC

Product name : Milling Machine Center Frame

After-sales Service Provided : Online Support

Machine Type : Machining Center

Name : 3 Axis Milling Machine

Keyword : Cnc 3 Axis Milling Machine

Function : Vertical Milling Machining

Application : Metal Machining

Precision : High Precision Machining Center

Color : White

Condition : New

Showroom Location : Egypt, Brazil, Indonesia, Russia

Year : 2023

Applicable Industries : Manufacturing Plant, Machinery Repair Shops, Other

Core Components : Bearing, Motor, Pump, Gear, Pressure vessel, Engine, Gearbox, Other

Packaging Details : Wooden cases(can be fumigated)

Port : China Port

Supply Ability : 150 Set/Sets per Month

Price : $30,000.00/sets 1-2 sets

MOQ : 1 set

Contact Now

High Volume Production Vertical Machining Center VMC1370L Repeatability ±0.006mm 2023

Products Description

Specification	Unit	VMC1270L	VMC1370L
Table size	mm	700x1360	700x1360
T-slot (No./width/pitch)	mm	5/18/122	5/18/122
Loading capacity	kg	1000	1200
Longitudinal travel (X)	mm	1200	1300
Cross travel (Y)	mm	700	700
Vertical travel (Z)	mm	600	600
Distance from spindle nose to table	mm	87-687	150-750
Distance from spindle center to column	mm	785	785
Spindle taper	-	BT40	BT50
Spindle speed	rpm	8000	8000
X/Y/Z-axis rapid feed speed	m/min	24/24/18	24/24/18
X/Y/Z-axis feed motor torque	N.m	23/23/23	23/23/23
X/Y/Z-axis positioning accuracy	mm	0.008	0.008
X/YZ-axis repetability accuracy	mm	0.005	0.005
Main motor power	kw	11/15	15/18.5
Air pressure source	kg/cm2	8	8
Total power	Kva	25	30

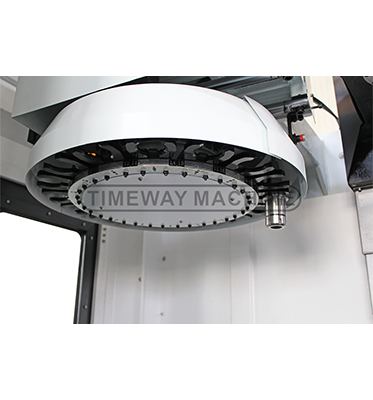

Tool magazine capacity	T	24 (Disc)	24 (Disc)
Guideway type	-	X: Linear; Y: Linear, four rails; Z: Slinding/linear
Machine weight	kg	9600	11000
Machine dimensions (LxWxH)	mm	3500x2500x3055	3820x2560x3100

1. Resin sand casting;
2. X, Y rails adopts imported linear guideway; Z rails are quenching -
plastic sliding guide rail pair;
3. X, Y, Z rails adopt stainless steel telescopic cover;
4. Standard with belt driven spindle, optional for direct driven spindle;
5. Taiwan production pneumatic cylinder;
6. Taiwan ATC, carousel type and disc type are available as option;
7. Imported bearings for leadscrews;
8. Import coupling;
9. Headstock balancing system have heavy casting or nitrogen
balance system as option;
10. Full enclosure;
11. Rigid tapping;
12. Spindle center air blast;
13. Work lamp;
14. Pilot lamp;
15. USB and LAN interface;
16. Manual pulse generator (MPG);
17. Centralized automatic lubrication system.
18. Cooling system.
19. Heat exchanger for electrical cabinet ;
20. Leveling blocks & bolts;
21. Toolbox and tools;

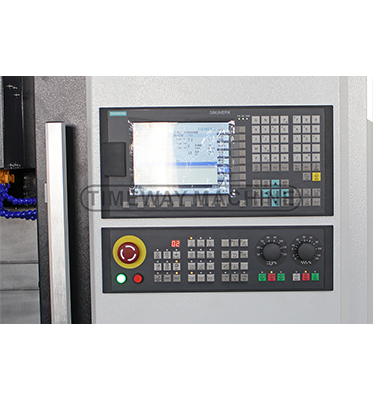

22. CNC controller: KND,GSK, HNC (China); SIEMENS, FANUC,
MITSUBISHI, FAGOR, etc.

1. The 4th axis wiring;
2. NC rotary table;
3. Direct driven spindle (Speed: 10000rpm, 12000rpm, 15000rpm);
4. Circular Coolant Nozzle;
5. Coolant through spindle (CTS);
6. Spindle oil cooler;
7. Air conditioner (A/C) for electrical cabinet;
8. Auto. Tool length measurement system;
9. Auto. Workpiece measurement systems;
10. Screw type chip conveyor;
11. Chain type chip conveyor;
12. High pressure water flush system;
13. Safety door;
14. Oil skimmer.

Machine Details

Why Choose Us

Renishaw laser interferometer for CNC vertical machining center：

Before the delivery, it adopts UK RENISHAW laser to do dynamic precision testing and offset, so the machine has the high positioning accuracy and re-positioning accuracy.
