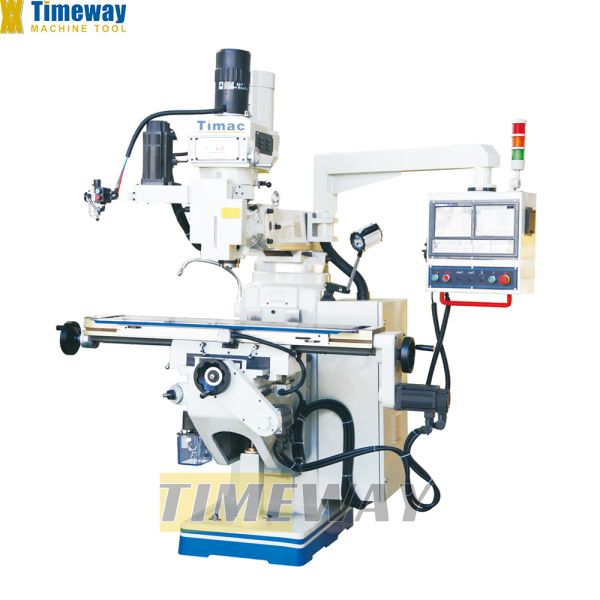

CNC Systemn KTM250 Vertical Universal Turret Milling Machine for Industry Production

Name: CNC Systemn KTM250 Vertical Universal Turret Milling Machine for Industry Production
Brand: TIMEWAY
Price: 12 USD

Quality CNC Systemn KTM250 Vertical Universal Turret Milling Machine for Industry Production for sale

Table Travel (X) (mm) : 750/850

Machining Capacity : Medium Duty

Table Travel (Y) (mm) : 400

Table Travel (Z) (mm) : 103

Spindle Taper : R8

Range of Spindle Speed(r.p.m) : 65 - 4500 r.p.m

Place of Origin : Henan, China

Brand Name : TIMEWAY

Model Number : KTM250

Type : VERTICAL

Spindle Motor Power(kW) : 2.2

Weight (KG) : 1400

Warranty : 1 Year

Key Selling Points : Competitive Price

Marketing Type : New Product 2024

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Product name : CNC Turret Milling Machine

After-sales Service Provided : Provided

Table size : 254x1270/254x1370mm

Longitudinal travel (X) : 750/850mm

Cross travel (Y) : 400mm

Vertical travel (Z) : 103mm

Machine Type : CNC Milling Machine

CNC or Not : CNC Systemn

Function : Machining Metal

Color : Opitional

Number of Axes : 3

Condition : New

Applicable Industries : Hotels, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Construction works , Energy & Mining

Showroom Location : Kenya, South Korea, Chile, Colombia, Japan, Australia, Canada, United Kingdom, Italy, Germany, Indonesia, India, Russia, Thailand

Core Components : Motor, Engine

Year : 2024

Price : $12,060.00/sets 1-2 sets

MOQ : 1 set

Contact Now

You can click on the picture to view the products you are interested in

One-Stop Shopping

CNC Systemn KTM250 Vertical Universal Turret Milling Machine for Industry Production

Product Description

Turret Milling Machine KTM250

Complete with GSK CNC system, FANUC or SIEMENS for choice.

Mill head can be turned, tilted and swivelled making it extremely versatile.

Central lubrication system comes standard.

Feed and rapid feed in X, Y and Z-axis by driven servo motor.

Standard Accessories:

Setp Pulley Mill Head

Draw Bar

Working Lamp

Oil Pump

Coolant Pump

Chip Collecting Tray

Electric Cabinet

Toolbox And Tools

Optional Accessories:

Variable Speed Mill Head

Inverter Mill Head

Air Draw Bar

Slotting Head

DRO

Gear Box Power Feed

Power Feed

Vise

8pcs/set Collet Chuck

15pcs/set Collet Chuck

58pcs/set Clamping Kit

Universal Dividing Head

H/V rotary table

Tilting Rotary Table

Spindle Guard

Hung Up Panel Bracket

Luxury Panel Bracket

Luxury Al-alloy Panel Bracket

Table Guard

Luxury Table Guard

Quill Feed Ruler

Table Up-down Motor

Auto. Oil Pump

Plastic Splash Guard

Specification

SPECIFICATION	UNIT	KTM250
Table size	mm	254x1270/254x1370
T-slot (No./width)	-	3/16
Loading capacity	kg	280
Longitudinal travel (X)	mm	750/850
Cross travel (Y)	mm	400
Spindle quill travel (Z)	mm	103
X/Y/Z-axis rapid feed speed	mm/min	5000
X/Y/Z-axis servo motor power	kw	1
Knee vertical travel	mm	400
Ram travel	mm	470
Distance from spindle to table	mm	0-400
Spindle speed	rpm	16steps, 50HZ: 65-4500/60HZ: 80-5440
Spindle taper	-	R8 (Optional: ISO40)
Main motor power	kw	2.2
Mill head swivel angle	°	±90°
Mill head tilting angle	°	±45°
CNC controller	-	FANUC or SIEMENS or GSK
Package size (LxWxH)	cm	190x200x223
Gross weight	kg	1400

Client feedback

Our Services

1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).

Company Introduction

Factory Display：

Factory Profile：

Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.

Text Introduction：

Company Profile：

Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.

Customer Visited：

So far, we have received many customers from abroad, and they are all very satisfied with our company and products

Exhibitions：

Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.

FAQ

Q: Why choose TIMEWAY MACHINE?

A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
